Installation Key Points

When laying cable trays, it is usually necessary to reserve space for wall openings.

In addition, the metal wires placed on the cable trays shall be routed in accordance with the architectural design.

Regarding the installation direction of the cable trays, it should generally be determined based on the shortest and most direct path.

Cable trays and trunking shall be routed in a short and direct manner, and shall be laid along walls, columns, or beams as much as possible.

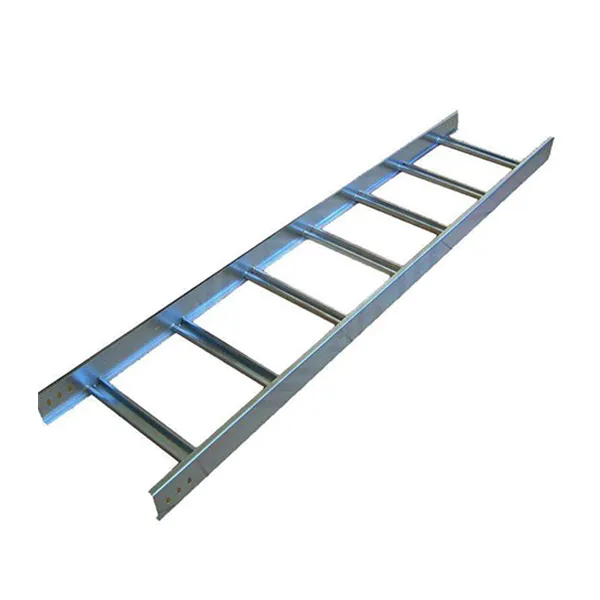

Step-Type Cable Tray

According to the routing direction of step-type cable trays and trunking, submit requirements to the civil engineering and structural engineering disciplines regarding the positions of embedded steel plates and load-bearing capacity required for reserved wall openings, floor openings, and hanger installation. Meanwhile, coordinate with the process, plumbing, and power engineering disciplines.

For concealed metal trunking wiring in the ground, close cooperation with the civil engineering discipline is required to reasonably determine the wiring path and equipment selection based on different structural types and architectural layouts.

Cables of different voltages or purposes shall not be laid in the same layer of a cable tray.
